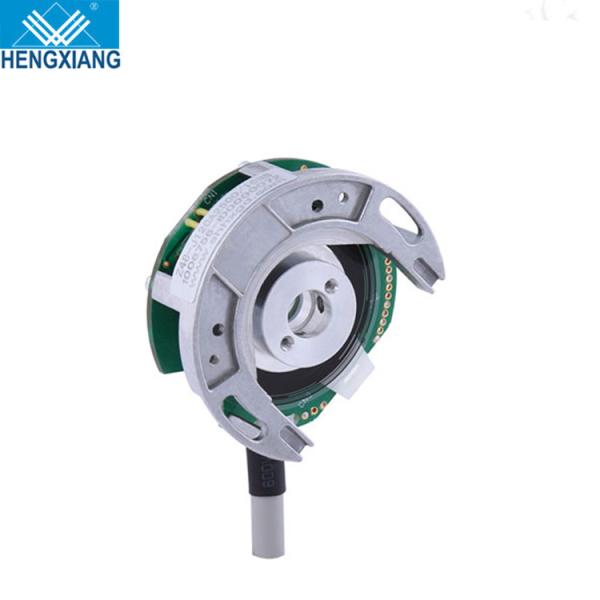

Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output

Name: Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48J Without Integral Bearing 1024ppr TTL Line Driver Output
Brand: HENGXIANG
Price: 1 USD

Wholesale Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output from china suppliers

Brand Name : HENGXIANG

Model Number : Z48

Certification : CE,ISO9001

Place of Origin : Shanghai,China

MOQ : 1pcs encoder to start order

Price : negotiable

Payment Terms : D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc

Supply Ability : 100K pieces per year

Delivery Time : 3-5 working days for sample order, 7-15 working days for mass order

Packaging Details : each 1 piece was packed into single carton box

Brand : HENGXIANG

Encoder type : bearingless encoder

External diameter : 48mm

Installation dimension : R22.35mm

Hollow shaft diameter : through hole 8mm

Resolution : 50-2500ppr;1000-2500/4/6/8

Output phase : Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-

Outlet type : Cable out from side

Output mode : NPN/PNP/HTL/TTL

Net weight : About 60g (with package)

Contact Now

Optical dc motor encoderincremental angle Rotary encoder Z48-J without integral bearing 1024ppr TTL line driver output

Overview

Quick Details

Model Number:: Z48encoder

Type:: Optical Encoder

Place of Origin:: Shanghai, China

Brand Name:: HENGXIANG

Usage:: Opcition sensor

Theory:: Opcition sensor

Output:: square-wave signal

Description:: Z48 series encoder

Brand:: HENGXIANG

Output phase:: A;AB;ABZ;ABZUVW

External diameter:: 48mm

Shaft diameter:: 10 /12 /8 /6mm (punched hole)

Thickness:: 22.5mm

Resolution:: up to 2500 PPR

Supply voltage:: DC5V ;DC8V-30V

Outlet type:: Radial cable

Weight:: about 80g (with package)

Output mode:: NPN;Voltage output ;difference output

Supply Ability

Supply Ability: 10000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Carton box.

Port: shanghai/guangdong/any port of china

Lead Time:

Quantity(Pieces)	1 - 10	>10
Est. Time(days)	10	To be negotiated

Why choose us?

--HENGXIANG brand--The trustworthy partner
  --CE approved--advantaged product quality;
  --Fast delivery--strong stock product ability;
  --Factory directly provide a competitive price;
  --One-stop service--for your efficient purchasing experience;
  --OEM design accepted--customized design, your own brand accepted

Rotary encoders without integral bearing operate without friction. The two components - the scanning head and the scale disk, drum, or tape - are adjusted to each other during assembly. Miniaturized modular rotary encoder for measured shafts up to 8 mm Special built-in mounting aid Without cover In addition to the system accuracy, the mounting and adjustment of the scanning head normally have a significant effect on the accuracy that can be achieved with rotary encoders without integral bearings. Of particular importance are the mounting eccentricity and radial runout of the measured shaft.

Z48 Series Rotary encoder Parameters

Items	Basic parameters
Brand	HENGXIANG
Encoder type	bearingless encoder
External diameter	48mm
Thickness	22.5mm
Installation dimension	R22.35mm
Hollow shaft type	through hole
Hollow shaft diameter	8mm
Resolution	50;60;100;200;250;256;300;360;400;450;500;512;600;1000;
	1024;1200;2000;2048;2500;
	1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2048/4；
	2048/6;2048/8；2500/4；2500/6；2500/8;
Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage	DC5V ; DC8-30V
Outlettype	Cable out from side
Output mode	NPN/(Open Collector Output)
	line drive (26LS31) TTL
	line drive(DC8-30V) HTL
Cable length	300mm
Consumption current	100mA MAX
Top response frenquency	300KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
GND	not connect to encoder
Mark to Space ratio	45% to 55%
Environmental temperature	Operating:-20 ～+80°；storage:-25 ～+90°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Material	aluminium alloy
Certification	CE
package	Carton box
Net weight	About 60g (with package)

Product Usage

- Product usage introduction

-Intelligent Fertilizer--Lifting and metallurgical --three-phase asynchronous motors
-Solar air -conditioner
-Armature rotor test system
  -High-speed cutting machine
Automatic rut -tester
-Intelligent equipment
Petroleum -machinery and equipment-Electrical Equipment
-Invertery

Company Introduction

ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients .

"HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own
  invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project.
  Our target:Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win. Sincerely welcome
  all customers to visit our company, to review and custom "HengXiang" brand products .

Packing&Shipping

Each single encoder is packed into a single safe carton with protecting bubble.
  Then all encoders will be put into a bigger carton to prepare shipment.

FAQ

Q: What’s your MOQ?
  A: 1pcs
  Q: How to order your encoder?
  A: Contact us, or email us, we will reply you as soon as possible.
  Q: Are you a factory or a trading company?
  A: we are 100% factory with our brand.
  Q: What’s your brand?
  A: HENGXIANG
  Q: Can you product ship to our country?
  A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
  Q: How to get the latest price?
  A: Contact us and tell me the encoder model selection.
  Q: How to select a right encoder model?
  A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
  Q: Do you offer technical support?
  A: Yes, we have professional technician who can solve all your doubts.
  Q: Can you factory offer a sample?
  A: Yes, sample can be provided.
  Q: How to pay for a sample?
  A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
  Q: Do you have some videos of your products?
  A: Yes, you could visit our YOUTUBE page for encoder videos.
  Q: What’s your encoder product guarantee policy?
  A: 1 year quality warranty and life-long technical support.
